Abstract
Background. Several anomalies of the middle cerebral artery have been described in humans. Since the early 2000s, an anatomical variant called “twig-like middle cerebral artery” has been described. It is defined as the replacement of the M1 segment by a plexiform network of vessels. Pathophysiology, clinical and radiological modalities of detection and follow-up are still unclear, although it may have clinical consequences.
Methods. We present two cases of patients with twig-like middle cerebral artery hospitalised in the neurovascular unit in Rennes - Pontchaillou University Hospital between July 2022 and February 2023. We then carried out a literature review of cases of twig-like MCA in order to better define the clinical and imaging characteristics of this disorder.
Results. Bleeding complications are the most frequent, often related to the rupture of an aneurysm. Complications are treated according to the usual procedure for stroke and cerebral haemorrhage. This entity is often misdiagnosed as Moya-Moya disease.
Conclusion. Twig-like MCA is an emerging diagnosis which can lead to ischemic and hemorrhagic complications. The etiological, therapeutic and follow-up management remains unclear and further longitudinal studies are needed to improve patients’ care.
1. Introduction
Twig-like Middle Cerebral Artery (MCA) is a congenital anomaly of the MCA described as a replacement of the M1 segment by a plexiform network of small vessels. This anomaly is also known as aplastic MCA, unfused MCA or rete mirabile. The physiopathology is still unclear but it is thought to arise from an aberration in embryonic development [1–3]. MCA and anterior cerebral artery (ACA) are normally formed by the coalescence of a network of small vessels. In twig-like MCA, these vessels do not fuse or do so incompletely and the M1 trunk is therefore replaced by a network of small vessels called twigs. It should also be noted that some authors believe that the network appears as a substitute network after a segmental steno-occlusal change in proximal M1, and that it evolves on its own as the individual grows but retains a plexiform appearance.
Twig-like MCA is an uncommon anomaly with a frequency reported in the literature between 0.1 and 1.17% [4–7]. However, it is a diagnosis that is becoming increasingly frequent with the development of imaging techniques. Most of the cases reported are from Asian countries and especially from Japan. In Europe, this vascular anomaly is still little known, and rarely diagnosed. Though, twig-like MCA disrupts cerebral haemodynamics and may lead to multiple symptoms and complications (headache, aneurysm, intracranial haemorrhage, ischemic stroke…). As a result of this lack of knowledge, there is likely to be an underdiagnosis and a lack of treatment recommendations. The main differential diagnosis remains Moya-Moya disease (MMD) although it has different anatomical features.
Hence, twig-Like MCA can have severe clinical consequences and deserves appropriate monitoring and therapeutic management. In this article, we propose 2 cases of twig-like MCA and a review of the literature in order to update the latest epidemiological data and clinical characteristics of this entity.
2. Cases presentations
We identified two cases of twig-like MCA during the period January 2022 and December 2023, in our neurovascular unit in Pontchaillou Hospital, Rennes. We then conducted a review of the literature based on the PRISMA criteria (Figure 3).
Figure 2. Iconography of the second case report : A. Initial axial CT scan. B. Cerebral angiography. C. 3 months-follow-up MRA. Showing aplasia of the right ICA terminus associated with a rete mirabile aspect.
2.1. Case 1
A 17-year-old female has been experiencing daily headaches for the past 3 years. She had a history of headaches during childhood which resolved with the use of corrective eyewear. A brain magnetic resonance imaging (MRI) performed when she was 4 years old was reported as normal at that time.
She is not undergoing any treatment or using contraception.
Her current headaches are daily and non-lateralised. They have a pulsatile character and are relieved by isolating herself in a quiet and dark room, suggesting migraine-like symptoms. There is no familial history of headaches or neurological symptoms.
Due to the recurrence of headaches during adolescence, she sought consultation with the neurologist, leading to a new MRI.
The MRI has initially been described with arterial anomalies, including dysplastic stenosis of the termination of the left internal carotid artery (ICA) and of the M1 segment of the left MCA with a developed arteriolar collaterality aspect. There was no vascular accident sequelae or sign of hypoperfusion.
These findings were suggestive of MMD. She was then hospitalised for an etiological and prognostic assessment.
The clinical examination at entry was normal and did not reveal any neurological deficit. The patient only described her usual migraines. Exhaustive biological check-up and lumbar puncture returned without any significant abnormalities.
Brain magnetic resonance angiography (MRA) revealed an aplasia of the left MCA in its M1 portion, replaced by a plexiform network of collaterals (Figure 1). This imaging also showed duplication of the left A1 segment and fenestration of the right A2 segment, along with anomalies of the middle cerebral artery.
The arteriography demonstrated aplasia of the proximal M1 segment replaced by a plexiform network, without abnormal distal vascularization with M2 branches of normal calibre and modal appearance (Figure 1). There was no evidence of smoke curl or stenosis of the carotid termination or the origin of the left A1. The rest of the arterial vessels were normal, with no intracranial aneurysms, significant stenosis or calibre irregularities. The arteriography findings suggested a congenital malformation of the twig-like type, and there were no arteriographic arguments supporting MMD. The review of the MRI performed when she was 4 years old effectively confirmed the presence of the plexiform network at that age, and it has remained unchanged since then.
A Diamox Brain perfusion Single Photon Emission Computed Tomography (SPECT) showed no abnormalities in cerebral perfusion, especially in the territory of the left middle cerebral artery.
Figure 1. Iconography of the first case report : A. Axial brain MRA TOF. B. Cerebral angiography. C. Coronal Brain MRA T2. Both showing aplasia of proximal M1 replaced by a plexiform network.
2.2. Case 2
A 42-year-old male was admitted to the hospital in July 2022 due to the sudden onset of vertigo and headaches followed by left hemiparesis. He had no medical history apart from type 1 diabetes and an occasional drug use. Upon admission to the emergency room, he was lethargic with a Glasgow Coma Scale (GCS) score of 10 with left hemiparesis, hemianesthesia and facial paralysis.
A Computed Tomography (CT) scan revealed right frontotemporal parenchymal haematoma associated with a subarachnoid haemorrhage (SAH). The injected sequences suggested a Moya-Moya type vascular anomaly with a plexiform network of vessels at the M1 segment of the right MCA (Figure 2).
Arteriography confirmed the presence of a plexiform network of vessels in place of the M1 segment of the right MCA with an approximately 50% stenosis of the origin of an M2 branch of the left sylvian artery (Figure 2). Initially, these anomalies were thought to represent an incomplete form of MMD. However, upon careful review of the images, the diagnosis was revised to twig like MCA.
Exhaustive clinical and biological investigations did not reveal any abnormalities that could fit into a secondary form of MMD.
Complementary brain MRA showed a hypoplastic appearance of the right ICA, which divided into numerous small vessels at its termination, creating a rete mirabile aspect. Additionally, there was a duplication of the A1 segment of the right ACA and early bifurcation of the right MCA. No signs of ischaemic sequelae, microbleeds, cavernomas, or aneurysm were seen.
A Diamox Brain perfusion SPECT conducted after the hospitalisation showed no abnormalities in cerebral perfusion.
A follow-up brain MRA at 3 months confirmed the rete mirabile like appearance consistent with Twig-Like MCA (Figure 2).
Clinically, after a period of rehabilitation, the patient's clinical condition significantly improved. At the 3-month follow-up visit, the patient was able to walk and perform activities of daily living independently. He still had left hemicorporal hypoesthesia with some neuropathic pain. He had not yet returned to work due to significant fatigue but had resumed physical activity at the gym.
3. Literature review
We conducted a search on PubMed to identify case reports of twig-like MCA using different keywords : “twig-like MCA”, “twiglike MCA”, “unfused MCA”, “aplastic MCA”, “MCA rete mirabile”, “rete MCA” from 2005 to 2023 excluding articles where demographic, clinical or radiological data were insufficiently detailed or missing. Based on our search criteria, we identified 32 reported cases of Twig-Like MCA, most of which were from Asian countries, particularly Japan (20 out of 32 cases i.e. 62,5% of the reported cases). Details of this literature review are available in Figure 3 and Table 1.

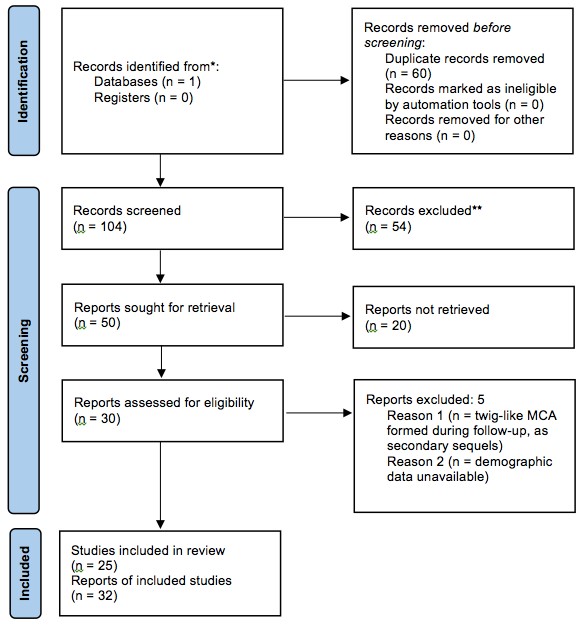

Figure 3. PRISMA diagram of our litterature review.
Our review did not reveal a specific age preference for the discovery of this anomaly, as it was found in individuals ranging from 17 to 81 years. In terms of gender distribution, our review finds 17 women and 15 men.
Twig like MCA is rarely discovered incidentally, with only 3 patients in our cohort being asymptomatic at the time of initial management. The most common mode of diagnosis is a bleeding complication (20 out of 32 patients i.e. 62.5% of the patients), mostly subarachnoid haemorrhages (13 out of 32 patients i.e. 40.6%) but also intraparenchymal (10 out of 32 patients i.e. 31%) or intraventricular (5 out of 32 patients i.e. 15.6%) haemorrhages. Cerebral infarction was observed in only 4 cases (i.e. 12.5%).
Complementary examinations usually involve an initial CT scan followed by MRA, depending on the practice. However, angiography remains the best examination for the final diagnosis of twig-like MCA. Some authors have complemented the assessment with SPECT. It is important to note that 4 patients out of 32 were initially misdiagnosed with MMD.
Initial imaging does not always identify the plexiform network of vessels developed at the expense of the MCA (19 cases out of 32, i.e. 59%). This network is sometimes hindered by the complications that reveal it, particularly in cases of hematoma resulting from aneurysm rupture, where only the cessation of blood flow in the middle cerebral artery is observed. Twig-like MCA is frequently revealed by the aspect of MCA stenosis (22 cases out of 32, i.e. 69%), or MCA occlusion (8 cases out of 32, i.e. 25%). In rare cases (3 out of 32 cases, 9%), initial imaging reveals anomalies in the anterior cerebral artery. One case even reported an anomaly of the internal carotid artery. In 15 cases out of 32 (i.e. 47%), an aneurysm was identified on the initial imaging, mostly on the plexiform network (7 cases out of 32, i.e. 22%). In only 9 cases (i.e. 28%) was the diagnosis of twig like made on initial imaging. In the other 23 cases, the diagnosis was rectified as the investigations progressed.
The bleeding complications may occur spontaneously or due to the rupture of an intracerebral aneurysm. Among the patients, 15 out of 32 patients (i.e. 46.9%) had one or more aneurysms located on the ACA, the plexiform network composing the MCA, the accessory MCA or even on the anterior choroidal artery. Most aneurysms were managed by clipping. Several patients (7 out of 32 patients) underwent bypass surgery alone or in combination with endovascular treatment to restore proper cerebral hemodynamics by increasing the vascular supply distally to the twig-like network. Finally, two patients underwent encephalomyosynangiosis.
| Case no. | Authors | Country | Year | Sex, Age | Symptoms | Radiological event | Initial diagnosis | Final diagnosis | Aneurysm | Aneurysm location | Treatment |
| 1 | Liu et al. [8] | Taiwan | 2005 | M, 44 | Headache, nausea, vomiting, impaired consciousness | Intracranial haemorrhage | Vascular network between the bifurcation of ICA and insular segment of MCA | Twig like MCA | Yes | Plexiform network vessels | Surgical clipping |
| F, 67 | Impaired consciousness | Intracranial haemorrhage | Vascular network between the bifurcation of ICA and insular segment of MCA and stenosis of proximal A1 | Twig like MCA | Yes | Plexiform network vessels | Surgical clipping | ||||
| 2 | Cekirge et al. [3] | Turkey | 2005 | M, 32 | Headaches | SAH and intraventricular haemorrhage | Embryonic unfused MCA with plexiform vascular network with ipsilateral ACA aneurysm | Left twig-like MCA | Yes | Left A1 segment in the ACA | Coil embolization carried out twice due to initial revascularisation |
| 3 | Akkan et al. [9] | Turkey | 2015 | M, 54 | Vertigo | No haemorrhage nor cerebral infection | > 70% right carotid artery stenosis | Right twig-like MCA | Yes | Left ICA supraclinoid segment | |
| M, 43 | Epileptic seizure and head trauma | SAH | Right twig-like MCA | Same as initial | No | ||||||
| F, 37 | Vertigo | No haemorrhage nor cerebral infection | Right twig-like MCA | Same as initial | No | ||||||
| 4 | Uchiyama et al. [10] | Japan | 2016 | F, 52 | Initially: sudden headache and temporary weakness in the right hand | Initially: no haemorrhage or cerebral infarction | Severe stenosis in the left MCA | Twig like left MCA | No | ||
| At 2 years: sudden headache and nausea followed by aphasia and weakness of the right extremities | At 2 years: diffuse SAH and intracerebral haemorrhage in the left temporo parietal lobe | ||||||||||
| 5 | Inoue et al. [11] | Japan | 2016 | M, 55 | Asymptomatic then, at 3 months, impaired consciousness | Initially asymptomatic | Left MCA occlusion | Twig like left MCA | No | Craniotomy and bypass surgery | |
| 3 months later: Subcortical haemorrhage left frontotemporal and subdural hematoma | |||||||||||
| 6 | Tashiro et al. [12] | Japan | 2016 | F, 76 | Sudden headache | SAH in the left sylvian fissure | Stenosis in the M1 segment of the MCA | Left twig-like MCA | No | ||
| F, 81 | Sudden headache | SAH in the left temporal lobe | Pseudo-occlusion in the M1 segment of the MCA and stenosis of the M2 segment | Left twig-like MCA | No | ||||||
| 7 | Lang et al. [13] | USA | 2017 | F, 54 | Right hemiplegia, global aphasia, severe headache, vomiting, impaired consciousness | Diffuse SAH and intracerebral haemorrhage in the frontal lobe and sylvian fissure | Occlusion of the left MCA superior trunk and MCA aneurysm | Twig like left MCA concerning M2 segment | Yes | M2 segment of the left MCA | Craniectomy |
| Surgical clipping | |||||||||||
| 8 | Seno et al. [2] | Japan | 2017 | F, 49 | Sudden severe headache and impaired consciousness | SAH and intraventricular haemorrhage | Ruptured distal anterior choroidal artery aneurysm and right twig like MCA | Same as initial | Yes | Anterior choroidal artery | Craniotomy |
| Surgical clipping | |||||||||||
| Bypass surgery | |||||||||||
| 9 | Sakai et al. [14] | Japan | 2018 | F, 65 | Initially: asymptomatic | Initially: no haemorrhage or cerebral infarction | Right twig like MCA with A1 aneurysm | Right twig like MCA with A1 aneurysm and ruptured de novo aneurysm on the twig like network | Yes | A1 segment of the ACA and multiples aneurysms of the plexiform network vessels | Coil embolization |
| At 4 years: impaired consciousness | At 4 years: intracerebral hematoma in the right frontal lobe and the caudate nucleus with intraventricular haemorrhage | Surgical clipping and bypass surgery | |||||||||
| 10 | Matsunaga et al. [15] | Japan | 2018 | F, 19 | Transient left upper limb hemiparesis, dysesthesia, and headache for 8 years | No haemorrhage nor cerebral infection | Suspicion of unilateral MMD | Right twig-like MCA | No | Bypass surgery and encephalomyosynangiosis | |
| 11 | Miura et al. [16] | Japan | 2018 | M, 69 | Sudden loss of consciousness | SAH | Occlusion of the left M1 segment, collateral arteries | Left twig like MCA and ruptured aneurysm in the collateral arteries from the left A1 to the left M2 segment | Yes | Plexiform network vessels | Surgical clipping |
| 12 | Goto et al. [17] | Japan | 2019 | F, 36 (pregnant 14 weeks) | Sudden aphasia, right hemiparesis and impaired consciousness (GCS 14) | Left putaminal haemorrhage | Severe stenosis/occlusion of the left MCA | Twig like left MCA and unruptured aneurysm at the A1-A2 junction of the ACA | Yes | A1-A2 junction of the ACA | Surgical clipping |
| F, 27 (pregnant 38 weeks) | Sudden headache, vomiting and impaired consciousness (GCS 6) | Intracranial haemorrhage in the left temporo-parietal lobe and intraventricular haemorrhage | Severe stenosis of the left MCA | Focal occlusion of the M1 segment of the left MCA and plexiform arterial network at the ipsilateral MCA trunk revealing twig like left MCA | No | ||||||
| 13 | Shirokane et al. [18] | Japan | 2020 | F, 64 | Sudden-onset headache | SAH in the left sylvian fissure | Bilateral aplastic or twiglike proximal MCA | Same as initial | No | Bypass surgery | |
| 14 | Matsuo et al. [19] | Japan | 2020 | F, 17 | Lethargic state with mild dysarthria and generalised tonic seizure in early post partum | Cortical SAH in the left frontoparietal convexity | SVCR and twig like left MCA | Same as initial | No | ||
| 15 | Fukuyama et al. [20] | Japan | 2020 | F, 53 | Headache and nausea | Diffuse SAH | Left twig like MCA and aneurysms in several fine arterioles | Same as initial | Yes | Fine arterioles of the plexiform network | Trapping of the aneurysms |
| 16 | Onoue et al. [7] | USA | 2021 | F, 26 | Post-partum headache and generalised convulsion | Hemosiderin staining in the left parietal region likely from prior SAH | Chronic occlusion of the MCA | Left twig-like MCA | No | ||
| M, 25 | Chronic headache with post-coital exacerbation | No haemorrhage nor cerebral infection | MMD | Left twig-like MCA | No | ||||||
| M, 46 | Left sided pulsatile tinnitus | No haemorrhage nor cerebral infection | Right MMD | Right twig-like MCA | No | ||||||
| 17 | Soejima et al. [21] | Japan | 2021 | M | Asymptomatic | No haemorrhage or cerebral infarction | Atherosclerotic M1 occlusion | Small unruptured aneurysms at the origin A1 of the anomalous collateral artery containing twig like networks and in the ACA | Yes | A1 origin | Surgical clipping and bypass surgery |
| 18 | Takarada et al. [22] | Japan | 2021 | F, 46 | Sudden headache | Left intraventricular haemorrhage | Left MCA aneurysm and MCA trunk stenosis | Twig like left MCA harbouring multiple unruptured aneurysms on the MCA and the plexiform arterial network | Yes | MCA and plexiform network vessels | Craniotomy |
| Surgical clipping | |||||||||||
| Bypass surgery | |||||||||||
| 19 | Serrano-Rubio et al. [23] | Mexico | 2022 | M,43 | Explosive right orbitofrontal headache and right hemiparesis | Right frontobasal hematoma with intraventricular disruption | Right MCA aneurysm (segment M1) and MCA stenosis | Unilateral right twig like MCA | Yes | M1 segment of the right MCA | Surgical clipping |
| 20 | Inoue et al. [24] | Japan | 2022 | M, 78 | Right hemiparesis and aphasia | Acute cerebral infarction | Bilateral MCA occlusion referring to Moya-Moya disease (MMD) | Embolic occlusion of the unilateral MCA and controlateral T-MCA | No | ||
| 21 | Watanabe et al. [25] | Japan | 2022 | M, 38 | Severe headache and visual hallucinations, left hemianopia, confusion | Intracerebral haemorrhage from a ruptured aneurysm | Twig like MCA | Twig like MCA and aneurysm at nonbranching point of the twig-like vessel deep in the hematoma | Yes | Non branching point of twig like vessel | Right pteronial craniotomy |
| Surgical clipping | |||||||||||
| 22 | Takeda et al. [26] | Japan | 2022 | M, 62 | Repetitive transient left hemiparesis episodes | No acute cerebral infarction but mild ischemic changes in white matter | Proximal occlusion of the right MCA and stenosis in the proximal portion of the left MCA | Right twig-like MCA and controlateral MCA stenosis | No | Bypass surgery and encephalomyosynangiosis | |
| 23 | Hato et al. [27] | Japan | 2022 | M, 40 | Apraxia, numbness of the right little finger | Acute cerebral infarction in the left parietal lobe | Hypoplasia of the origin of the MCA and compensatory vascular formation | Left twig-like MCA | No | ||
| 24 | Terakado et al. [28] | Japan | 2023 | F, 77 | Left hemiparesis | Right medial side of the anterior lobe infarction | Proximal right A2 occlusion and distal right A2 dissection | Right twig-like MCA with ipsilateral A2 dissection | No | ||
| 25 | Zhang et al. [29] | China | 2023 | M, 56 | Acute headache | SAH | Right twig-like MCA and ruptured aneurysm at the origin of the accessory MCA | Same as initial | Yes | Origin of the accessory MCA | Endovascular coil embolization |
Table 1. Demographic, clinical and radiological findings of 26 reported cases of twig-like MCA.
4. Discussion
Twig-like MCA remains an underdiagnosed condition in Europe, and patients often encounter an initial misdiagnosis due to its nonspecific clinical manifestations.
This literature review highlighted the small number of cases of this syndrome described, revealing either a lack of awareness of this syndrome or a low number of cases.
Our literature review suggests a slight female predominance of twig-like MCA, which has also been found in previous studies [4,5]. This female predominance is also found in MMD [4]. Larger studies would be beneficial to confirm this predominance and to investigate the influence of factors, particularly hormonal ones, in the development of twig-like MCA.
Clinically, patients with twig-like MCA may present with headaches, hemiparesis, aphasia, or impaired consciousness, which can evoque several other diagnoses. All of these symptoms are not specific to this disease and are more closely linked to the complications that arise. The radiological features of hematomas, aneurysms and ischemic strokes do not distinguish a twig-like abnormality from events related to other causes. Twig-like syndrome is rarely identified on initial imaging (just over half the cases in our review of the literature).
Twig-like MCA can be mistaken for various cerebral anomalies, including atherosclerosis, especially as patients with twig like often have cardiovascular risk factors [4]. However, the most common differential diagnosis is Moya-Moya disease [1,4,5,7,30], that consists in a progressive distal stenosis of the internal carotid artery extending to the proximal segments of the MCA and the ACA. This progressive stenosis induces the development of replacement vessels with a characteristic angiographic appearance of “smoke curls”, from which the Japanese name of Moya-Moya is derived. Therefore, twig-like MCA and MMD share similar angiographic features, leading up to 70% of initial misdiagnosis [4].
However, certain features can help to distinguish the two conditions (Table 2). Twig-like MCA is unilateral in the large majority of reported cases whereas MMD is commonly bilateral (30%). Furthermore, twig-like MCA usually spares the termination of the ICA and does not involve the posterior cerebral artery unlike MMD. However, there was one case in our review involving both MCAs, with an embolic occlusion of a MCA and a twig-like appearance of the contralateral MCA [24]. In our first clinical case, internal carotid artery dysplasia was described on initial imaging, but later refuted on arteriography. The involvement of the internal carotid artery was also refuted a posteriori in one of the cases in our review [3]. These findings suggest the need for caution in the initial radiological interpretation, which may lead to a misdiagnosis between twig-like and MMD. In case of doubt, arteriography can rectify the diagnosis. Current knowledge therefore suggests that twig-like does not involve arteries other than the MCA and ACA, but imaging knowledge of this syndrome is still imperfect and remains to be improved.
The maintenance of adequate perfusion in twig-like MCA also explains why the transdural anastomoses from the ACE seen in MMD are not present. However, both conditions include leptomeningeal anastomoses from the ACA and/or PCA. Moreover, the plexiform vascular network develops parallel to the M1 segment of the MCA in twig like syndrome, while in MMD, the suppletive vessels are oriented perpendicular to the axis of M1 of the MCA.
The frequency of arterial anomalies associated with these two conditions appears to be different. Aneurysms, for example, can be seen in both syndromes but are more frequent in the twig-like MCA (35% vs 12% according to the literature) [4,7,31]. In fact, our literature review highlights that patients with a twig-like MCA are particularly at risk of developing intracranial aneurysms that may lead to bleeding complications. The increased frequency of aneurysms may partly explain the frequent haemorrhagic complications in the twig-like MCA while ischemic complications are most common in MMD [4]. However, some haemorrhagic complications seem to occur independently of aneurysm rupture, suggesting that certain aneurysms are incidentally discovered during an acute event unrelated to the aneurysm itself [17]. Moreover, in some patients with cerebral haemorrhage, no aneurysm was detected, suggesting that other mechanisms may explain the haemorrhagic complications, such as flow turbulence in the plexiform network and downstream vessels.
Twig-like MCA is also a cause of cerebral infarction [24,26–28], maybe due to hemodynamic stress in the plexiform network vessels, but it is rarer than in MMD.
| Twig-like MCA | Moya-Moya disease |
| Congenital replacement of the M1 segment by a plexiform network of small vessels called twig thought to arise from aberration in embryonic development | Spontaneous progressive steno occlusion of the distal ICA and proximal branches, with anormal collateral vessel for suppliance |
| Clinical aspects : | |
| Stroke (58.6%) : hemorrhagic >> ischemic. More likely to be asymptomatic | Stroke (86%) : ischemic > hemorrhagic. Rarely asymptomatic (< 15% cases) |
| Radiological aspects : | |
| Unilateral involvement | Can be unilateral (30%) but mostly bilateral |
| Rare involvement in the ICA terminus | Constant ICA terminus involvement |
| No involvement of posterior cerebral artery or transdural anastomosis from the ECA | Possible PCA involvement and transdural anastomoses |
| Leptomeningeal anastomoses from the ACA and/or PCA [4,8] | Leptomeningeal anastomoses from the ACA and/or PCA |
| Twig like network join with the in situ MCA | Collateral vessels do not coalesce into a single main trunk |
| Frequent intracranial aneurysms (34.5%) | Occasional intracranial aneurysms (10.5%) |
| Frequent coexisting arterial anomalies (48.3%) concerning the MCA and ACA | Occasional coexisting arterial anomalies (12.3%) |
| No angiographic progression | Angiographic progression with progressive steno-occlusion and development of collateral vessels |
| Twig like network exists in parallel with the M1 segment of the MCA | Moya-Moya vessels are oriented perpendicular to the axis of the M1 segment of the MCA |
Table 2. Clinical and radiological differences between Twig-like MCA and MMD.
Figure 4. Imaging comparison. A. Twig-like MCA. B. Moya Moya disease.
The formation and rupture of aneurysms and their rupture in twig like MCA are probably related to hemodynamic stress and flow turbulence, which weaken the thin wall of the vessels forming the plexiform network [8,27]. Histological studies of aneurysms in twig like MCA have shown an internal elastic lamina (IEL) disruption and a thin aneurysmal wall [25]. The same histological findings are reported in patients with aneurysms and no history of twig-like MCA.
The increased risk of bleeding complications makes the diagnosis of twig like MCA important to prevent its potentially fatal consequences. Currently, there are no precise recommendation issued in Europe regarding the etiological and therapeutic management of this condition. Most of the time, the investigations carried out are similar to those performed in MMD, as the two conditions are often initially confused. Unlike MMD, which can be associated with systemic pathologies, twig-like primarily involves cerebral vascularization, and therefore, systemic investigations are not required.
The therapeutic management is not yet well-defined, except for the management of complications such as the rupture of aneurysms.
Contrary to aneurysms not related to twig-like MCA, where the endovascular embolization has a prominent place, the complex network of small-calibre vessels constituting twig-like often poses limitations on the feasibility of endovascular treatment. As a result, clipping predominantly constitutes the approach, especially in the context of hemorrhagic events.
Some teams also perform bypass surgery between the intra- and extracranial circulation inspired by the techniques used in the management of MMD. Precisely, one of those bypass surgeries, frequently used in MMD, encephalomyosynangiosis, can be performed in twig-like. This surgical technique, consisting of the transposition of the outer layer of the dura mater, a branch of the superficial temporal artery and the temporal muscle, aims to stimulate neoangiogenesis and to promote the development of cerebral anastomoses in order to re-establish an adequate flow in the cerebral hemisphere vascularised by the plexiform network. However, in the two cases we report, no hypoperfusion was found on MRI or SPECT. Thus, it is worth considering whether these examinations, usually performed in the investigation of MMD, should be systematic in the investigation of a twig like MCA.
The management of follow-up is also poorly defined, varying from one centre to another and typically consists of clinical and imaging monitoring. The follow-up time varies from a few months to several years [11]. The imaging aspect appears stable during follow-up, with only one case of aneurysm progression reported [14]. Our cases confirm the stability of the imaging aspect, over one decade in the first case and over a few months in the second case. While most reported cases do not show progression, the case of progression aforementioned [14] underlines the need for follow-up, particularly radiological, to detect possible long-term complications.
In our cohort, no deaths were reported during follow-up. However, several patients required rehabilitation, and some still have neurological symptoms at the follow-up visit (e.g., mild cognitive impairment, aphasia, hemiparesis necessitating a cane…) such as our second case report.
Finally, echoing the female predominance of twig-like MCA found in the literature, two cases of haemorrhagic complications were reported during pregnancy [17] and one case of epilepsy and headache occurred in the post-partum context [7]. The small number of patients does not allow us to conclude that there is a link between the pregnancy context and hemodynamic consequences in patients with a twig-like anomaly. However, these cases suggest that close monitoring of patients with a known twig-like MCA should be implemented during pregnancy and confirm the need for larger studies to investigate the role of hormones in the occurrence of this syndrome and its complications.
In this context, our results must be qualified. Longitudinal studies on larger cohorts will be needed to confirm our analyses. There are also probably other distinctive features of the syndrome that are not known at this stage. The current development of research will make it easier to detect twig-like syndrome, create specific therapies, particularly before complications arise, and improve management of complications when they do occur. For the moment, in the absence of long-term studies or sufficiently large cohorts and regarding the frequent occurrence of complications, these patients should be treated with caution and offered regular follow-up.
5. Conclusion
Twig-like MCA is an uncommon congenital anomaly in Europe, with an emerging diagnosis in recent years. The main differential diagnosis remains Moya-Moya disease or steno-occlusive disease because of their close angiographic aspects. The complications differ, however, with haemorrhagic events being more frequent in twig like MCA. Hence, precise angiographic explorations are essential for accurate diagnosis. The screening, additional investigations and therapeutic management remains unclear and further studies including a significant number of patients with long-term follow-up are needed to improve the management of this syndrome in the future. Longitudinal monitoring is also indicated to detect potential progressive complications of the twig-like.
